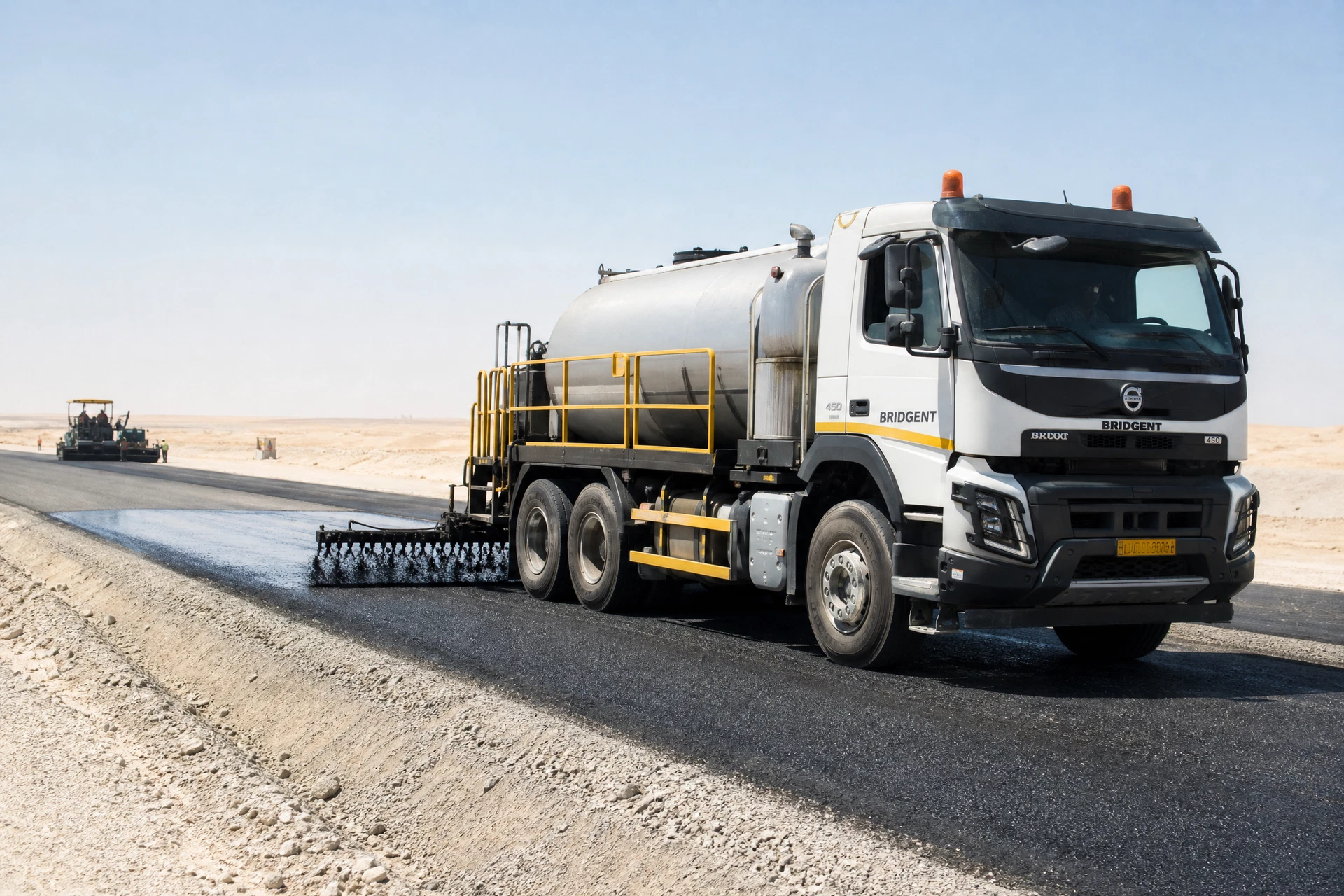

Chip seal, a cost-effective and widely used pavement preservation technique, extends the lifespan of asphalt surfaces by providing a waterproof layer and improving skid resistance. However, the success and longevity of a chip seal application heavily depend on rigorous quality control (QC) during and after construction. This guide delves into essential field testing methods, acceptance criteria, and common defects encountered in chip seal projects, offering practical insights for road engineers, procurement managers, and government agencies.
The Importance of Quality Control in Chip Seal Applications
Effective quality control ensures that the chip seal meets design specifications, performs as intended, and delivers the expected service life. Without proper QC, issues such as premature aggregate loss, bleeding, or inadequate skid resistance can arise, leading to costly repairs and compromised road safety. For government projects, adherence to strict QC protocols is often a contractual obligation, safeguarding public investment and ensuring infrastructure reliability.
Key Field Testing Methods for Chip Seal Quality Control
Several critical field tests are employed to assess the quality of chip seal applications. These tests evaluate various aspects, from material application rates to the final surface characteristics.
1. Application Rate Verification (Tray Test)
Accurate application rates for both asphalt binder and aggregate are paramount. Deviations can lead to either an excess of binder (bleeding) or insufficient binder (aggregate loss). The tray test is a standard method for verifying binder and aggregate application rates in the field.
#### Procedure: * Binder Application: Place pre-weighed trays (typically 0.1 m² to 0.2 m²) on the pavement surface before the distributor truck passes. After the binder application, immediately weigh the trays with the applied binder. The difference in weight, divided by the tray area, gives the binder application rate in kg/m² or gal/yd². * Aggregate Application: Similarly, place trays on the freshly applied binder before the aggregate spreader. After the aggregate is spread, collect the aggregate from the trays and weigh it. This provides the aggregate application rate in kg/m² or lb/yd².
#### Acceptance Criteria: * Typically, binder application rates should be within ±5% of the target design rate. Aggregate rates usually have a tolerance of ±10%. * Variations outside these ranges necessitate immediate adjustments to equipment settings.
2. Aggregate Embedment Check
Proper embedment of aggregates into the binder is crucial for preventing aggregate loss and ensuring a durable surface. Insufficient embedment can lead to raveling, while excessive embedment can cause bleeding.
#### Procedure: * Visually inspect the chip seal surface shortly after rolling. A good rule of thumb is that 50-70% of the aggregate particle should be embedded in the binder, with the remaining portion exposed to provide skid resistance. * A more quantitative method involves carefully removing aggregate particles and measuring the embedded depth using a caliper or specialized gauge. This can be done on a representative sample of aggregates.
#### Acceptance Criteria: * Visual assessment by experienced personnel is often the primary method. Some agencies specify a minimum embedment depth, often expressed as a percentage of the average aggregate dimension.
3. Texture Depth Measurement (Sand Patch Test)
Surface texture is vital for skid resistance and drainage. The sand patch test is a common method to determine the macrotexture depth of the chip seal surface.
#### Procedure: * A known volume of fine sand (e.g., 25 cm³) is poured onto the chip seal surface. * The sand is then spread into a circular patch, filling the voids between the aggregate particles, until the tops of the aggregate are just visible. * The diameter of the circular patch is measured, and the texture depth is calculated using the formula: Texture Depth = (Volume of Sand) / (Area of Patch).
#### Acceptance Criteria: * Minimum texture depth requirements vary by agency and road classification, typically ranging from 0.8 mm to 1.5 mm for new chip seals. For instance, a common specification might require a minimum texture depth of 1.0 mm.
4. Bleeding Detection
Bleeding occurs when excess asphalt binder rises to the surface, creating a shiny, black, and often sticky film. This reduces skid resistance and can pick up loose aggregate or debris.
#### Procedure: * Visual inspection is the primary method. Look for shiny, black areas on the pavement surface, especially in wheel paths or during hot weather. * A simple blotter test can confirm bleeding: press a piece of absorbent paper onto the surface; if it picks up asphalt, bleeding is occurring.
#### Acceptance Criteria: * Any significant bleeding is generally unacceptable and requires corrective action, such as applying a light dusting of sand or fine aggregate.
5. Sweeping and Curing
Proper sweeping after initial rolling is crucial to remove loose aggregate, which can be a safety hazard. The chip seal then needs a curing period to allow the binder to fully set and achieve optimal adhesion.
#### Procedure: * Sweeping: Conduct initial sweeping within 24 hours of application, and subsequent sweepings as needed, typically over several days, until no significant loose aggregate remains. * Curing: Monitor traffic and environmental conditions during the curing period. Avoid heavy braking or sharp turns on the fresh chip seal.
#### Acceptance Criteria: * Minimal loose aggregate remaining on the surface after final sweeping. The surface should be stable under traffic.
Documenting and Reporting QC Results for Government Projects
Thorough documentation of all QC tests and observations is critical for government projects. This provides a record of compliance, aids in troubleshooting, and serves as a reference for future maintenance.
Essential Documentation Elements:
* Project Details: Project name, location, date of application, weather conditions (temperature, humidity, wind). * Material Information: Binder type and grade, aggregate type, source, and gradation. * Equipment Calibration: Records of distributor and spreader calibration. * Test Results: Detailed results for each field test (tray tests, embedment checks, sand patch tests, bleeding observations), including locations and times. * Corrective Actions: Any adjustments made during application and their effectiveness. * Photographic Evidence: Before, during, and after application photos, especially of any defects or corrective measures.
Reporting Structure:
QC reports should be clear, concise, and include a summary of findings, raw data, and conclusions regarding compliance with specifications. For example, a report might highlight that the application rates were consistently within the specified ±5% tolerance, ensuring optimal performance. Bridgent Technology, a leading manufacturer of road maintenance equipment, often emphasizes the importance of precise application rate control, which can be achieved with their advanced spreader systems.
Common Defects and Their Causes
Understanding common chip seal defects helps in both prevention and rectification.
1. Aggregate Loss (Raveling)
* Cause: Insufficient binder application, poor aggregate embedment, dirty or wet aggregate, premature traffic, or cold weather application. * Impact: Reduced skid resistance, premature deterioration.
2. Bleeding (Flushing)
* Cause: Excessive binder application, soft binder grade, insufficient aggregate, or hot weather conditions. * Impact: Reduced skid resistance, sticky surface, potential for aggregate pickup.
3. Streaking
* Cause: Malfunctioning distributor spray bar nozzles, inconsistent pressure, or improper overlap. * Impact: Uneven binder distribution, leading to localized aggregate loss or bleeding.
4. Transverse Cracking
* Cause: Reflective cracking from underlying pavement, or thermal cracking due to binder stiffness in cold temperatures. * Impact: Water infiltration, accelerated pavement deterioration.
5. Delamination
* Cause: Poor adhesion between the chip seal and the existing pavement, often due to a dirty or wet surface, or incompatible materials. * Impact: Complete failure of the chip seal layer.
Bridgent Technology's Role in Quality Chip Seal Applications
Manufacturers like Bridgent Technology play a crucial role in enabling high-quality chip seal applications. Their state-of-the-art equipment, including precision asphalt distributors and aggregate spreaders, are designed to ensure accurate and uniform material application, directly addressing many of the common causes of defects. Investing in reliable equipment from reputable suppliers like Bridgent is a foundational step towards achieving superior chip seal performance and longevity.
Key Takeaways
Effective chip seal quality control is indispensable for maximizing the performance and lifespan of pavement preservation treatments. By diligently implementing field testing methods such as tray tests for application rates, aggregate embedment checks, and sand patch tests for texture depth, agencies can ensure compliance with specifications. Thorough documentation and reporting are vital for accountability and future reference. Addressing common defects through careful material selection, precise application, and appropriate curing practices will lead to durable, safe, and cost-effective road infrastructure. Adherence to these principles, often supported by advanced equipment, is key to successful chip seal projects.
