Complete Guide to Bitumen Emulsion Types: RS, MS, SS, CRS, CMS, CSS — Applications and Selection

Bitumen emulsions are a cornerstone of modern road construction and maintenance, offering a versatile and environmentally friendlier alternative to hot-mix asphalt. These emulsions consist of fine droplets of bitumen dispersed in water, stabilized by an emulsifying agent. Their ability to be applied at lower temperatures significantly reduces energy consumption and emissions, making them a preferred choice for various road applications globally. Understanding the different types and their specific uses is crucial for engineers and procurement managers to ensure optimal performance and longevity of road infrastructure.

Understanding Bitumen Emulsion Classifications

Bitumen emulsions are primarily classified based on two key characteristics: setting time and electrical charge of the bitumen particles. These classifications dictate their suitability for different applications and environmental conditions.

Classification by Setting Time

The setting time refers to how quickly the water evaporates and the bitumen particles coalesce to form a continuous film. This is a critical factor in determining the workability and application method of the emulsion.

#### Rapid Setting (RS) Emulsions

Rapid Setting (RS) emulsions are designed to break quickly upon contact with aggregate, typically within minutes. This rapid breaking ensures that the bitumen adheres almost immediately to the aggregate, minimizing runoff and allowing for quick opening to traffic. They are characterized by a relatively low emulsifier content.

Applications: * Chip Seal (Surface Dressing): RS emulsions are ideal for chip seal applications, where a layer of emulsion is sprayed onto the pavement, followed by an application of aggregate chips. The rapid setting ensures quick adhesion of the chips and minimizes displacement under traffic. * Surface Treatments: Used for various surface treatments to provide a waterproof layer and improve skid resistance. * Fog Seal: A light application of diluted RS emulsion used to rejuvenate aged asphalt surfaces and seal minor cracks.

#### Medium Setting (MS) Emulsions

Medium Setting (MS) emulsions break more slowly than RS emulsions, allowing for more workability and mixing with aggregates. The setting time can range from several minutes to a few hours, depending on environmental conditions and the specific formulation. They contain a moderate amount of emulsifying agent.

Applications: * Premix for Patching: MS emulsions are commonly used for cold mix patching, where they are mixed with aggregates to create a workable material for repairing potholes and distressed areas. * Open-Graded Mixes: Suitable for mixing with open-graded aggregates to create permeable asphalt layers. * Penetration Macadam: Used in the construction of penetration macadam, where aggregate layers are penetrated with emulsion.

#### Slow Setting (SS) Emulsions

Slow Setting (SS) emulsions are designed for maximum workability and can remain stable for several hours, even after mixing with fine aggregates. They have the highest emulsifier content, which delays the breaking process. This extended workability makes them suitable for applications requiring significant mixing or extended hauling times.

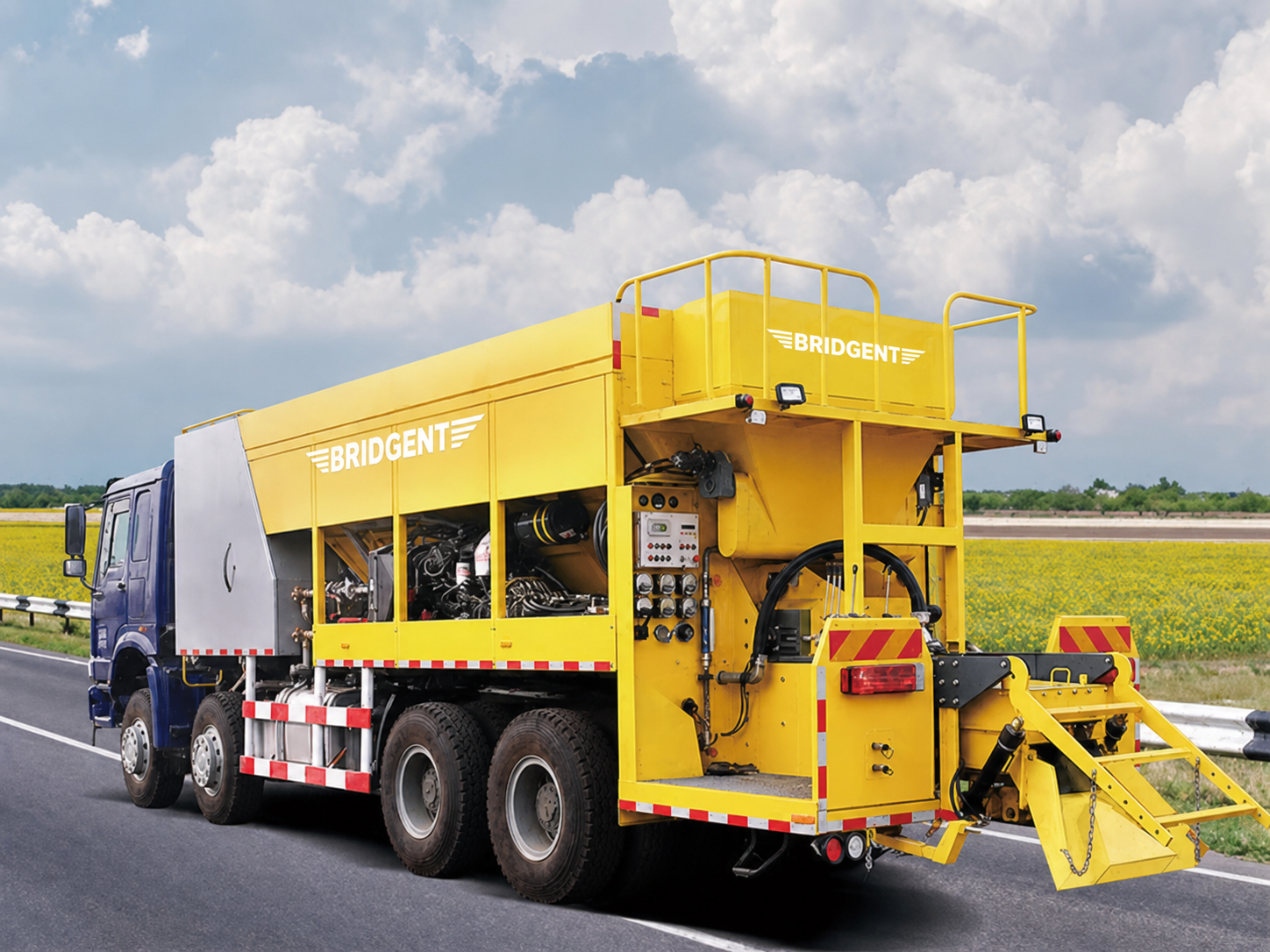

Applications: * Prime Coat: Applied to granular bases before laying asphalt layers to promote adhesion and prevent water penetration. SS emulsions penetrate the base course effectively. * Tack Coat: A very thin layer of SS emulsion applied between asphalt layers to ensure proper bonding. The slow setting allows for uniform coverage and good adhesion. * Slurry Seal and Micro-surfacing: These applications involve mixing SS emulsions with fine aggregates, mineral fillers, and water to create a slurry that is spread over existing pavements to seal cracks, improve skid resistance, and extend pavement life. The slow setting is crucial for proper mixing and spreading. * Soil Stabilization: Used to stabilize soil bases by binding soil particles together.

Classification by Electrical Charge

Bitumen emulsions are also classified by the electrical charge of the bitumen particles, which influences their interaction with aggregates and their overall stability.

#### Cationic Emulsions (C)

Cationic emulsions have positively charged bitumen particles. They are the most widely used type in road construction due to their strong adhesion to negatively charged aggregates (which are common in many parts of the world). The positive charge of the bitumen droplets is attracted to the negative charge of the aggregate surface, leading to a rapid and strong bond.

Common Cationic Emulsion Grades: * CRS (Cationic Rapid Setting): Similar to RS, but with cationic properties, offering excellent adhesion for chip seals and surface treatments. * CMS (Cationic Medium Setting): Used for cold mixes, patching, and penetration macadam, providing good workability and strong adhesion. * CSS (Cationic Slow Setting): Ideal for prime coats, tack coats, slurry seals, and micro-surfacing, ensuring deep penetration and extended workability.

#### Anionic Emulsions (A)

Anionic emulsions have negatively charged bitumen particles. They are less common than cationic emulsions but are still used in specific applications, particularly with positively charged aggregates like limestone. The negative charge of the bitumen droplets repels negatively charged aggregates, requiring careful selection of aggregate type or the use of additives to promote adhesion.

Common Anionic Emulsion Grades: * RS-1, RS-2 (Rapid Setting): Used for chip seals and surface treatments, especially with aggregates that have a positive surface charge. * MS-1, MS-2 (Medium Setting): Employed for cold mixes and patching. * SS-1, SS-2 (Slow Setting): Suitable for prime coats, tack coats, and slurry seals, particularly with compatible aggregates.

Selecting the Right Bitumen Emulsion for Your Project

Choosing the appropriate bitumen emulsion is critical for the success and longevity of any road construction or maintenance project. Several factors must be considered to make an informed decision.

Key Selection Factors

1. Application Type: The primary determinant is the intended use. As detailed above, different setting times and charges are suited for specific applications like chip seals, tack coats, or slurry seals. 2. Aggregate Type: The mineralogical composition and surface charge of the aggregate play a significant role. Cationic emulsions generally perform well with most aggregates, while anionic emulsions require positively charged aggregates for optimal adhesion. 3. Climatic Conditions: Ambient temperature, humidity, and wind speed affect the emulsion's breaking and curing time. In hot, dry conditions, slower-setting emulsions might be preferred to prevent premature breaking, while in cooler, humid conditions, faster-setting emulsions might be necessary. 4. Traffic Volume: For high-traffic areas, rapid-setting emulsions are often chosen to minimize disruption and allow for quick reopening of roads. 5. Equipment Availability: The type of spraying or mixing equipment available can influence the choice of emulsion. Some emulsions require specialized equipment for proper application. 6. Project Specifications and Standards: Always adhere to local and international standards and project specifications, which often dictate the type and grade of emulsion to be used.

Comparison Table: Bitumen Emulsion Types and Applications

Practical Technical Details and Specifications

When specifying bitumen emulsions, engineers often refer to standards such as ASTM D2397 (for cationic emulsions) and ASTM D977 (for anionic emulsions), or equivalent international standards. These standards define critical properties such as viscosity, storage stability, particle charge, residue by distillation, and penetration of the residue.

For instance, a common specification for a CRS-2 emulsion for chip seal might include:

* Viscosity (Saybolt Furol at 50°C): 100-400 seconds * Storage Stability (24h): < 1% separation * Particle Charge: Positive * Residue by Distillation: > 65% * Penetration of Residue (25°C, 100g, 5s): 100-250 dmm

These specifications ensure that the emulsion performs as expected under specific project conditions. Manufacturers like Bridgent Technology adhere to these stringent standards, providing high-quality bitumen emulsions tailored for diverse road applications. Their commitment to research and development ensures that their products, such as their advanced CMS-1h for cold recycling, meet the evolving demands of the global infrastructure market.

Bridgent Technology's Role in Bitumen Emulsion Innovation

Bridgent Technology is a leading manufacturer known for its comprehensive range of bitumen emulsions, designed to meet the rigorous demands of international road construction. Their product portfolio includes various grades of RS, MS, and SS emulsions, both cationic and anionic, ensuring solutions for every application from routine maintenance to large-scale infrastructure projects. Bridgent's expertise in formulation and quality control guarantees consistent performance and reliability, making them a trusted partner for road engineers worldwide. Their technical support team also assists clients in selecting the most suitable emulsion type, optimizing application methods, and troubleshooting any challenges, reinforcing their position as an industry leader.

Key Takeaways

Bitumen emulsions are indispensable in modern road construction and maintenance, offering a range of benefits including environmental advantages and application versatility. The selection of the correct emulsion type—whether rapid, medium, or slow setting, and cationic or anionic—is paramount. This choice depends on the specific application, aggregate characteristics, climatic conditions, and project requirements. By carefully considering these factors and adhering to technical specifications, road professionals can ensure the optimal performance and durability of their pavement projects. Partnering with experienced manufacturers like Bridgent Technology further enhances project success through reliable products and expert support.
